Ambient Ozone
Monitor and Controller
OMC-1

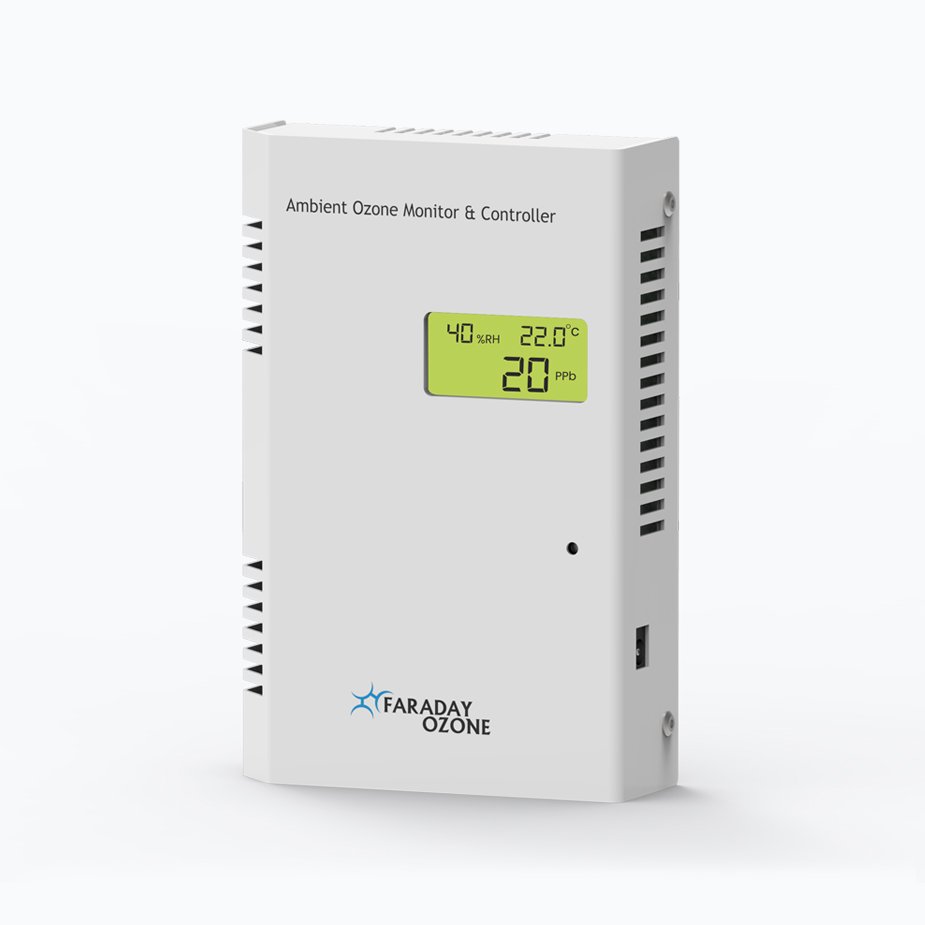

The OMC-1 Ambient Ozone Monitor & Controller is specially designed for continuous real-time detecting and monitoring of ambient ozone in the air. It has electrochemical ozone sensor which works quickly to measure the ozone presence accurately. Suitable for use on a wide range of applications. It is compact, lightweight, which keeps the whole system controlled against the ozone concentration.
- Real time detection and monitoring
- Electrochemical ozone sensor inside
- LCD display with three colour backlights
- Ozone measuring range 0 to 5000 ppb (0 to 5 ppm)
- High performance and easy to install
Product Overview
The OMC-1 Ambient Ozone Monitor & Controller is very essential in detecting any ozone leakage from ozone systems placed in indoors. It is made up of high grade aluminium powder coated with wall mount access that can be easily attached to an ozone system. It measures the amount of ozone in the air from 0 to 5000 ppb concentrations up to 5 ppm. It has LCD display with three colour backlights (Green/Yellow/Red).

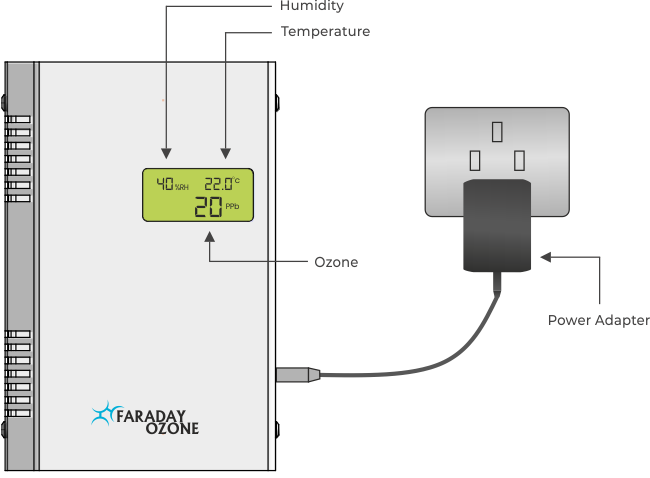

Turn ON the power, the LCD display activated in green. The measured temperature and the relative humidity displays on the upper line of the LCD and the second line is the ozone level.
- Specially designed for detecting indoor ambiance quality
- Modbus RS-485 communication interface
- Buzzer alarm and three colour backlight LCD indication
- Provide 2x relay dry contact outputs and 1x analog output
- Multiple application, wall mounting type
- Temperature and Humidity measurement in the display
Working Principle
The Electrochemical sensor use electrolytes and electrodes to measure ozone presence. When ozone comes into contact with the electrolytes in the device, it interacts with electrolytes. This causes electrons to start passing between the two electrodes, triggering the device. The sensor works very quickly.
Turn ON the power, the LCD display activated in green. The measured temperature and the relative humidity displays on the upper line of the LCD and the second line is the ozone level.
Technical Specifications
| Model | OMC-1 |
| Input Power | 24 VAC / VDC |
| Power Consumption | 2.8 Watts |
| Ozone Measurement | 0-5000 ppb (0-5 ppm) |
| Display Resolution | 1 ppb (0.001 ppm) |
| Warm Up Time | < 60 seconds |
| Temperature Measurement | 5°C to 60°C |
| Humidity Measurement | 0 ~ 80% RH |
| Sensing Element | Electrochemical Sensor |
| Temperature Sensor | NTC 5k thermistance / HS series capacitive |
| LCD Backlight | Green - Normal Yellow - First stage alarm Red - Second stage alarm |
| Sound Alarm | Buzzer alarm and Red backlight |
| Working condition / Storage conditions | 5°C - 35°C (41°F ~ 95°F) / 0 ~ 80% RH |
| Material of Construction | Aluminium powder coated |
| Dimension (LxWxH) | 102.6 x 36.3 x 155 mm |
| Weight | 320 g |
Downloads
FAQs
Ozone monitor is must in every industry uses ozone systems. It should be mounted near to the ozone generator room to detect the accumlation of high level of ozone exposed and alarm when a certain level is exceeded.
The Electrochemical sensor use electrolytes and electrodes to measure ozone presence. When ozone comes into contact with the electrolytes in the device, it interacts with electrolytes. This causes electrons to start passing between the two electrodes, triggering the device. The sensor works very quickly.
The lifespan of an electrochemical ozone sensor is approximately 2 to 3 years depending upon your application.
Calibration is to ensure that the gas measurements are accurate and correct.
Ozone monitor should be calibrated once in a year. Depending upon the application, frequent calibration may be required for exact reading.
Warranty of ozone monitor is 1 year.
