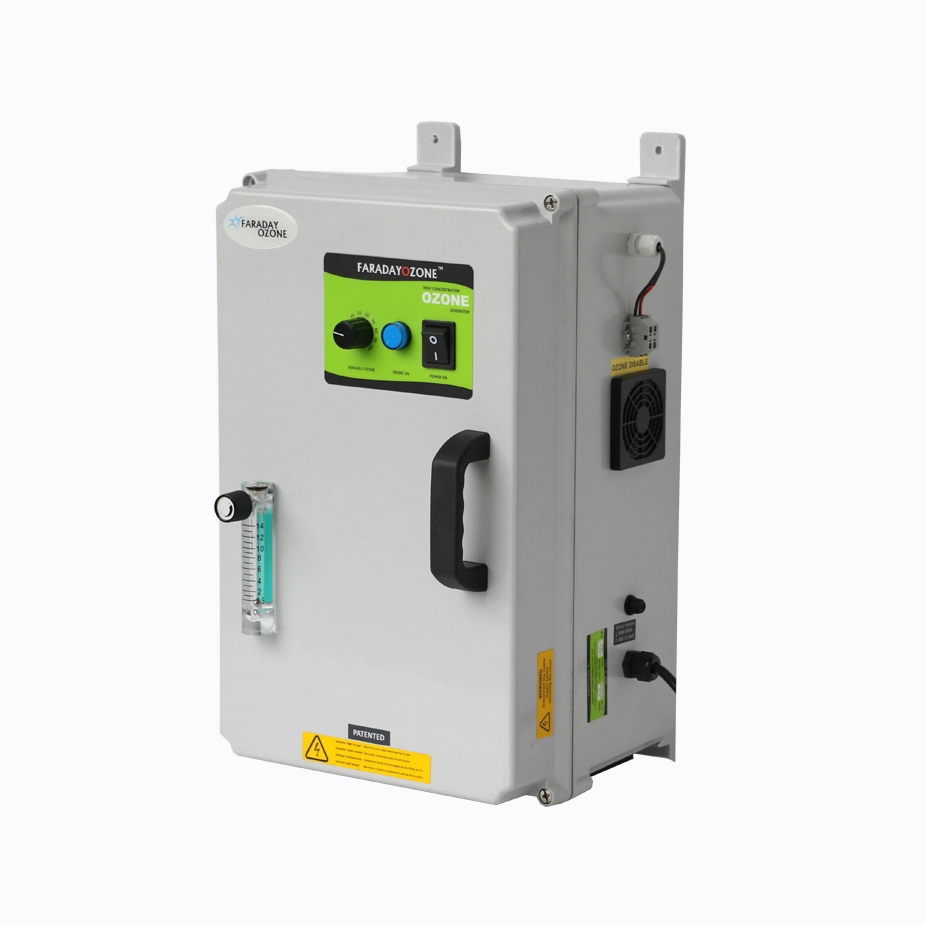

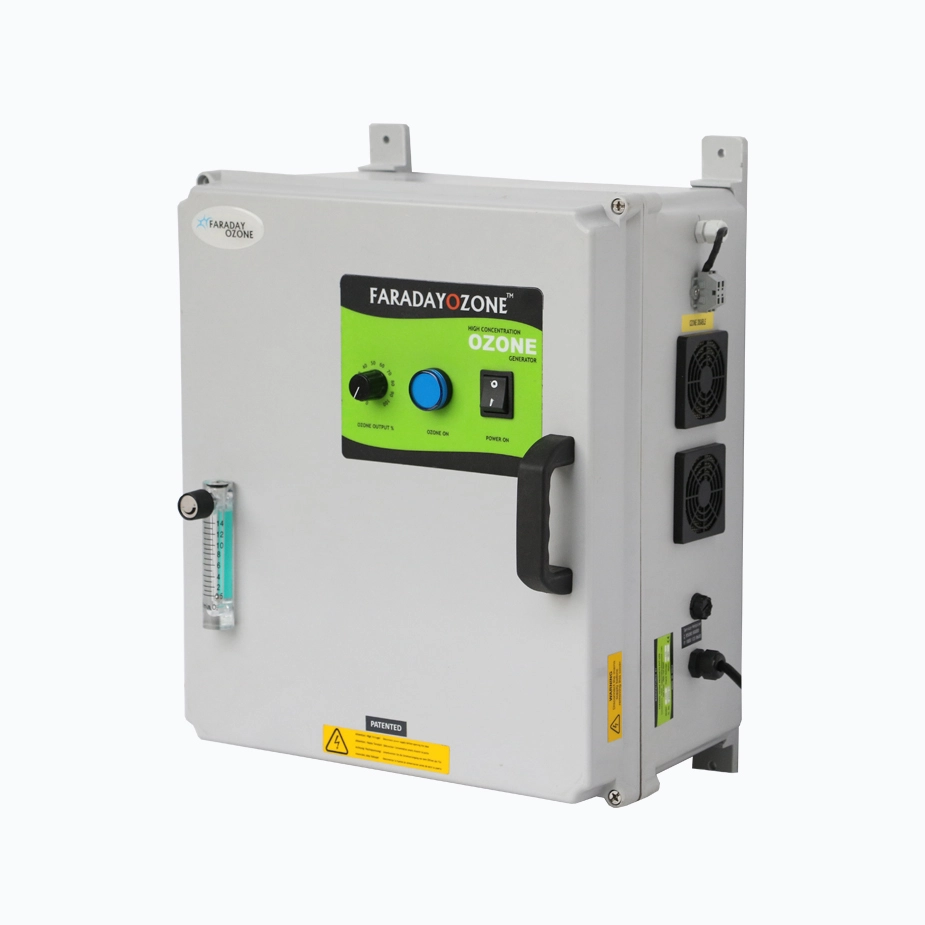

Ozone Generator
A-series
The A-series Air Feed Ozone Generator is ready to use, compact, low cost, ozone generator suited for small ozone requirements of up to 20 gm/hr. It comes with inbuilt oil free compressor, provides ozone gas, by just giving power connection to it. No other additional connections are required, just plug and play system, simple to install and easy to operate.
- Ready to use ozone system
- Smallest footprint and continuous operation
- High voltage and high frequency corona discharge
- Longlife stainless steel electrodes
- High performance compressor
Product Overview
The A-series Air Feed Ozone Generators uses our patented High Voltage, High Frequency Corona Discharge technology for ozone production. It is built on a GRP fiberglass / MS enclosure that is rugged, weather proof and static electricity safe. All the materials used inside the machine are highly compatible and resistant to ozone such as SS fittings, SS base plate and Teflon tubes for connections.
Air cooling by using highly efficient fans in specific designed areas allows for better heat dissipation thereby increasing the overall efficiency and life.
- 2 to 20 gm/hr ozone production
- Patented air cooled electrodes
- Independent system with no oxygen demand
- Protection from power and temperature fluctuations
- High performance with efficient ozone production
- Lowest power consumption
Have a question or need assistance ?
We are here to help you with anything you need !
Working Principle
The Ozone generator is an electronic system which converts oxygen into ozone using the principle of corona discharge technology. High voltage electric supply applied into the ozone generator provides the energy required to form electrical arcs known as corona discharge inside the patented corona cells. These corona discharge splits the oxygen molecules into Oxygen atoms which recombine to form Ozone.
The produced ozone is then used for water and air treatment. Ozone is produced by Ozone Generator on-site and it is completely safe for the disinfection process.
Extended Warranty Upto 1 Year
Our Ozone Generator are robust and reliable which offer a no-hassle 1 year warranty. We are confident enough on our technology and warranty covers for core materials like compressor and ozone electrodes comes for longevity. We recommend you to clean the fans filters and entire machine at least once in a month and replace the ozone power board and electrodes on a timely basis.
Technical Specifications
| Model | A2G | A4G | A6G | A10G | A20G |
|---|---|---|---|---|---|
| Input Power | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz |
| Power Consumption | 150 Watts | 180 Watts | 230 Watts | 300 Watts | 450 Watts |
| Ozone Capacity | 2 gm/hr | 4 gm/hr | 6 gm/hr | 10 gm/hr | 20 gm/hr |
| Ozone Concentration | 2 % W | 2 % W | 2 % W | 2 % W | 2 % W |
| Feed gas | 10 to 12 lpm | 10 to 12 lpm | 10 to 12 lpm | 10 to 12 lpm | 20 to 24 lpm |
| Dimension (LxWXH) | 270 x 210 x 420 mm | 370 x 210 x 420 mm | 370 x 210 x 420 mm | 550 x 600 x 1107 mm | 550 x 600 x 1107 mm |
| Weight | 10 kg | 12 kg | 12 kg | 65 kg | 70 kg |
Service & Installation Support across World
We are here to do service and installation support after sales. We have a team of engineers available round clock to handle and to provide prompt solution for your service related queries effectively and supportive towards product installation.
Product Certification
We design and manufacture our products in all level of quality standards and specifications which has been patented, quality tested and certified which guaranteed best quality product in the market.
FAQs
The ozone generator is an electronic system which converts oxygen into ozone using the principle of corona discharge technology. High voltage electric supply applied into the ozone generator provides the energy required to form electrical arcs known as corona discharge inside the patented corona cells. These corona discharge splits the oxygen molecules into oxygen atoms which recombine to form Ozone. The produced ozone is then used for water and air treatment.
Ozone is not stored in bulk anywhere rather ozone gas is produced by ozone generator on your site, which is very safe and environmentally friendly. Ozone is not flammable or explosive, as it has a very short life, which treats and decomposes back to oxygen.
Faraday’s ozone generator contains patented innovative ozone techniques to produce ozone, which is air-cooled and results in low cost, minimal maintenance, lowest power consumption, easy installations and many. We have 20+ patented ozone products and we are ISO certified too. We export more than 50+ countries with proper sales and service support as well.
Ozone disappears rapidly and it is produced by ozone generator at the site for water and air treatment of various applications. Because of its short life, ozone reacts and decomposes soon when produced. The half life of ozone in the water is about 30 minutes, which means that every half hour the ozone concentration will be reduced to half its initial concentration.
High voltage electric supply applied into the ozone generator provides the energy required to form electrical arcs known as corona discharge inside the patented corona cells. These corona discharge splits the oxygen molecules into oxygen atoms which recombine to form ozone.
Warranty of ozone generator is 1 year.
