Ozone Generator
L-series

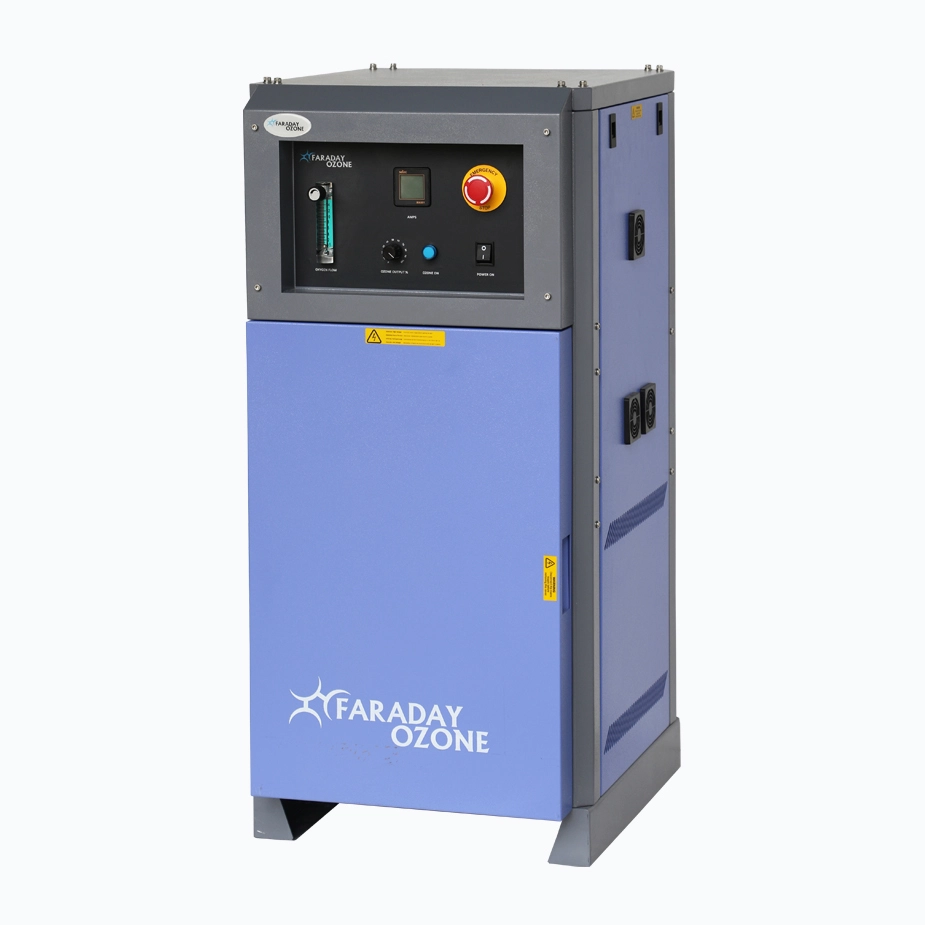

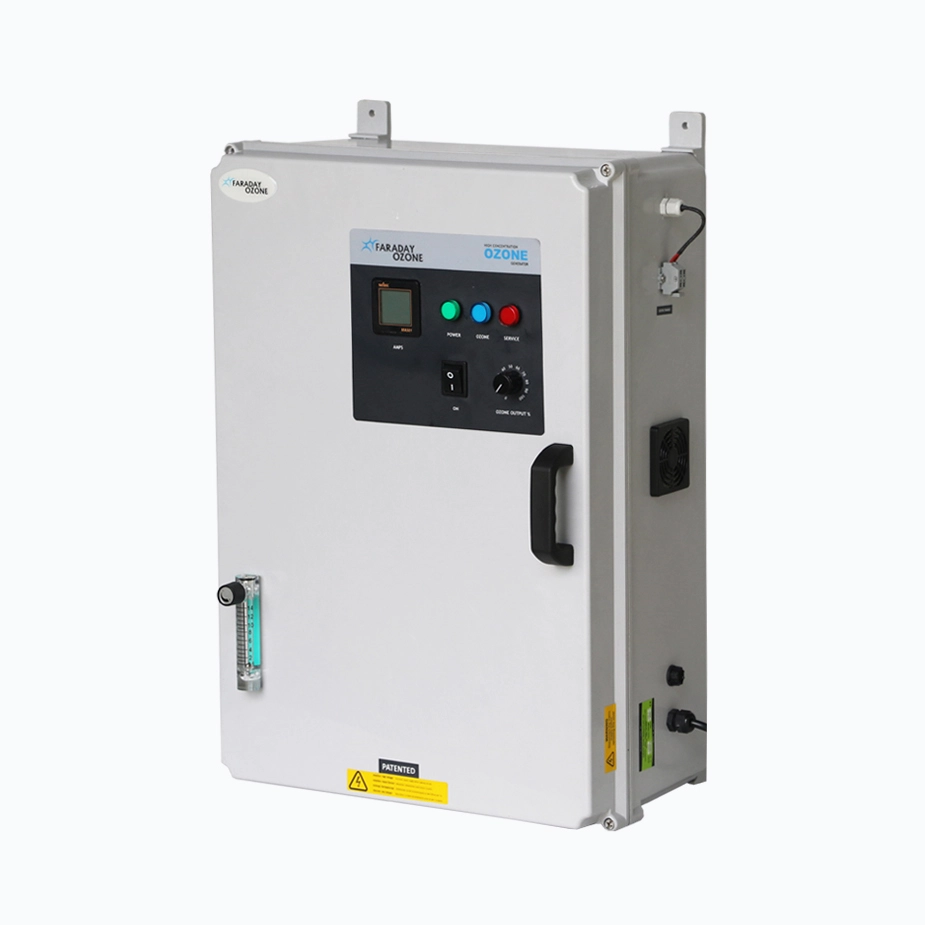

The State of the Art L-series Oxygen Feed Ozone Generator is designed for high performance to work with external oxygen or dry air as feed gas to produce ozone. It is most ideal for industrial applications where higher ozone concentration required of up to 300 gm/hr. This series is designed for high reliability, continuous running and maintenance free operation.
- Robust ozone electrodes
- Excellent performance and reliability
- High voltage and high frequency corona discharge
- Continuous operation with easy monitoring control panel
- GRP / MS design for ruggedness and durability
Product Overview
The L-series Oxygen Feed Ozone Generators produce up to 300 gm/hr ozone by just power connection to it. It works with our patented High Voltage, High Frequency Corona Discharge technology for ozone production from the external oxygen or dry air as feed gas. It has very good life on ozone cells compared with air feed ozone generators because of moisture free dry oxygen. We also supply suitable high purity industrial oxygen concentrators needed for the L-series.
It is built on GRP / MS enclosure for for rugged, weather proof and static electricity safe.
- 10 to 300 gm/hr ozone production
- High ozone concentration up to 6 to 12 wt%
- Optional 4-20 mA / 0-5 V analog interface
- Protection from power and temperature fluctuations
- High performance with efficient ozone production
- Lowest power consumption
Have a question or need assistance ?
We are here to help you with anything you need !
Working Principle
The ozone generator is an electronic system which converts oxygen into ozone using the principle of corona discharge technology. High voltage electric supply applied into the ozone generator provides the energy required to form electrical arcs known as corona discharge inside the patented corona cells. These corona discharge splits the oxygen molecules into oxygen atoms which recombine to form ozone.
The produced ozone is then used for water and air treatment. Ozone is produced by ozone generator on-site and it is completely safe for the disinfection process.
Extended Warranty Upto 1 Year
Our Ozone Generator are robust and reliable which offer a no-hassle 1 year warranty. We are confident enough on our technology and warranty covers for core materials like ozone electrodes and PCB comes for longevity. We recommend you to clean the fans filters and entire machine at least once in a month and replace the ozone power board and electrodes on a timely basis.
Technical Specifications
| Model | L10G | L20G | L30G | L40G | L50G | L60G | L100G | L200G | L300G |
|---|---|---|---|---|---|---|---|---|---|
| Input Power | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz |
| Power Consumption | 90 Watts | 90 Watts | 150 Watts | 230 Watts | 250 Watts | 280 Watts | 800 Watts | 180 Watts | 2600 Watts |
| Ozone Capacity | 10 gm/hr | 20 gm/hr | 30 gm/hr | 40 gm/hr | 50 gm/hr | 60 gm/hr | 100 gm/hr | 200 gm/hr | 300 gm/hr |
| Ozone Concentration | 6 - 8 % W | 6 - 8 % W | 6 - 8 % W | 6 - 8 % W | 6 - 8 % W | 6 - 8 % W | 8 - 12 % W | 8 - 12 % W | 8 - 12 % W |
| Feed gas | 3 to 5 lpm | 3 to 5 lpm | 3 to 5 lpm | 3 to 5 lpm | 3 to 5 lpm | 3 to 5 lpm | 10 to 15 lpm | 20 to 30 lpm | 20 to 30 lpm |
| Dimension (LxWXH) | 270 x 210 x 420 mm | 270 x 210 x 420 mm | 370 x 210 x 420 mm | 420 x 210 x 600 mm | 420 x 210 x 600 mm | 420 x 210 x 600 mm | 457 x 490 x 1034 mm | 550 x 969 x 1350 mm | 550 x 969 x 1350 mm |
| Weight | 10 kg | 10 kg | 15 kg | 17 kg | 18 kg | 18 kg | 55 kg | 140 kg | 150 kg |
Service & Installation Support across World
We are here to do service and installation support after sales. We have a team of engineers available round clock to handle and to provide prompt solution for your service related queries effectively and supportive towards product installation.
Product Certification
We design and manufacture our products in all level of quality standards and specifications which has been patented, quality tested and certified which guaranteed best quality product in the market.
FAQs
The ozone generator is an electronic system which converts oxygen into ozone using the principle of corona discharge technology. High voltage electric supply applied into the ozone generator provides the energy required to form electrical arcs known as corona discharge inside the patented corona cells. These corona discharge splits the oxygen molecules into oxygen atoms which recombine to form Ozone. The produced ozone is then used for water and air treatment.
Ozone is not stored in bulk anywhere rather ozone gas is produced by ozone generator on your site, which is very safe and environmentally friendly. Ozone is not flammable or explosive, as it has a very short life, which treats and decomposes back to oxygen.
Faraday’s ozone generator contains patented innovative ozone techniques to produce ozone, which is air-cooled and results in low cost, minimal maintenance, lowest power consumption, easy installations and many. We have 20+ patented ozone products and we are ISO certified too. We export more than 50+ countries with proper sales and service support as well.
Ozone disappears rapidly and it is produced by ozone generator at the site for water and air treatment of various applications. Because of its short life, ozone reacts and decomposes soon when produced. The half life of ozone in the water is about 30 minutes, which means that every half hour the ozone concentration will be reduced to half its initial concentration.
High voltage electric supply applied into the ozone generator provides the energy required to form electrical arcs known as corona discharge inside the patented corona cells. These corona discharge splits the oxygen molecules into oxygen atoms which recombine to form ozone.
Warranty of ozone generator is 1 year.
