OEM Ozone Generator
OEM-series
OEM - 100x1, 100x2, 180x1, 180x2, 180x3, 180x4, 180x6 & Block 50G
We have an exclusive OEM range of ozone generators that we are supplying to various ozone companies throughout the world for various applications. Our OEM Ozone Generators are available from 1 g/h to 50 g/h modules. Mounted on a base plate, ready to fix into an enclosure, our OEM models are the finest available in the market. Our simple yet advanced design makes it easier for the companies to integrate our product with their system. Unlike many companies, we offer a compact design. These OEM models utilize the same technologies from which our final products are made of. Our OEM models are proven with results across the globe – our major partners are located in Singapore, Switzerland, Hungary, USA, Italy, France and Norway.
- Compact and lightweight
- High concentration of ozone
- Long life stainless steel electrode
- Efficient smooth operation
- High voltage output wave form is substantially sinusoidal
- Ozone resistant transformer encapsulation ensures long trouble free life in harsh environments
- Short circuit proof, current limiting topology is designed to continues in the most demanding of electrical and temperature environments
| Models | Feed gas | Feed gas pressure | Electrical Rating | Dimension | Weight | Submit Enquiry |
|---|---|---|---|---|---|---|

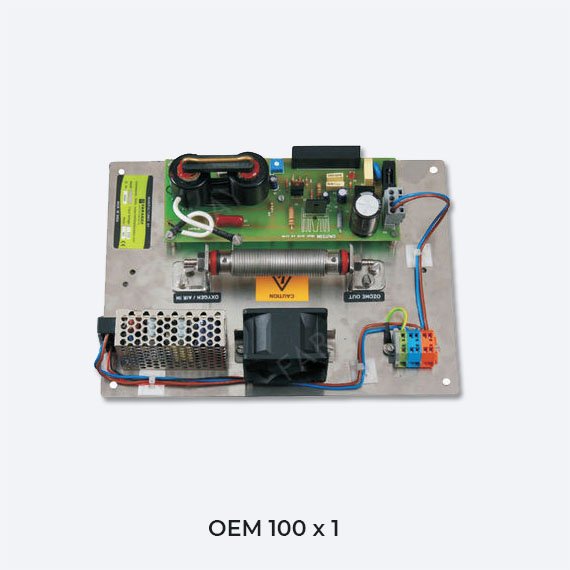

| OEM 100x1 | Dry air / Oxygen | 0 - 15 psi | 230 V, 50 Hz, 40 W | 265 x 250 in mm | 1.5 kgs | |

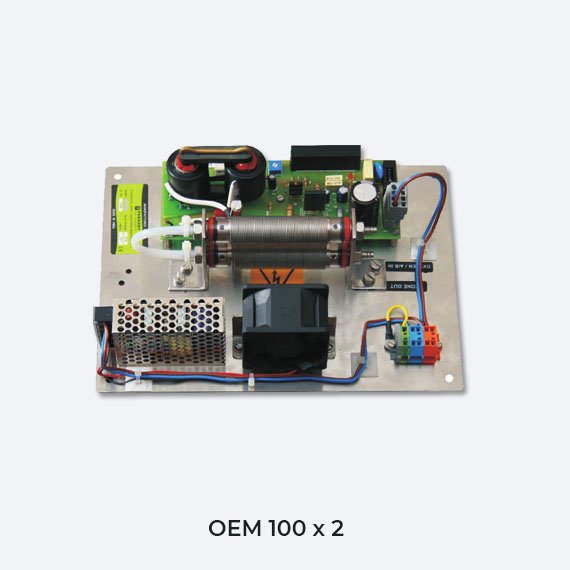

| OEM 100x2 | Dry air / Oxygen | 0 - 15 psi | 230 V, 50 Hz, 60 W | 265 x 250 in mm | 1.7 kgs | |

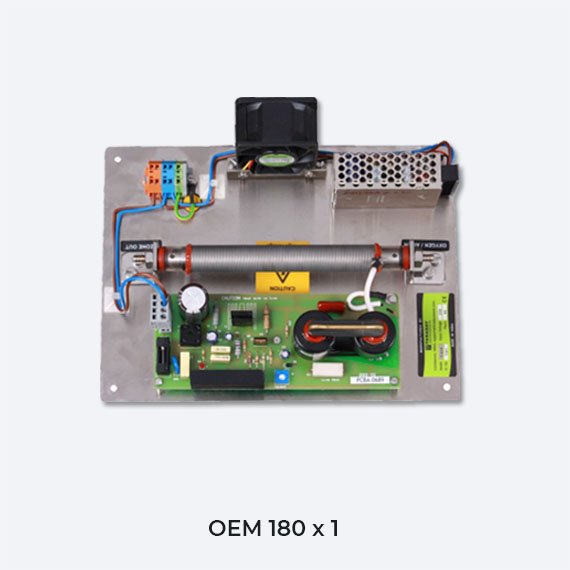

| OEM 180x1 | Dry air / Oxygen | 0 - 15 psi | 230 V, 50 Hz, 50 W | 265 x 250 in mm | 1.7 kgs | |

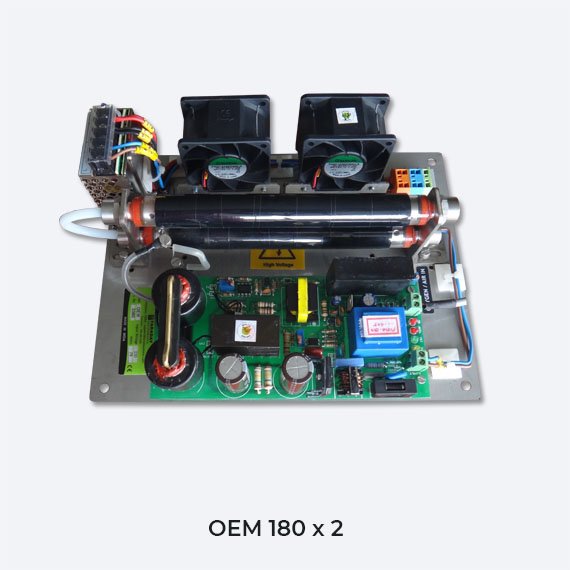

| OEM 180x2 | Dry air / Oxygen | 0 - 15 psi | 230 V, 50 Hz, 100 W | 265 x 250 in mm | 2.5 kgs | |

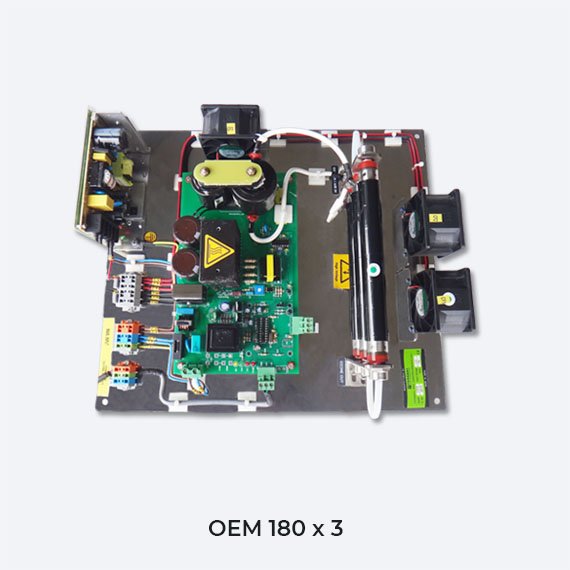

| OEM 180x3 | Dry air / Oxygen | 0 - 15 psi | 230 V, 50 Hz, 140 W | 380 x 330 in mm | 4.1 kgs | |

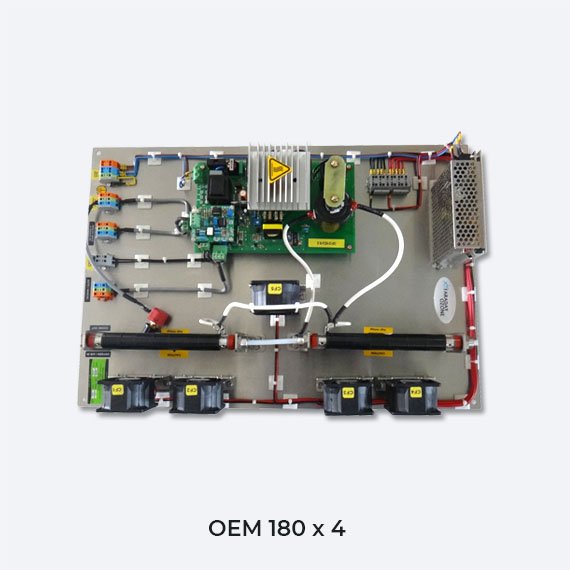

| OEM 180x4 | Dry air / Oxygen | 0 - 15 psi | 230 V, 50 Hz, 200 W | 560 x 380 in mm | 7 kgs | |

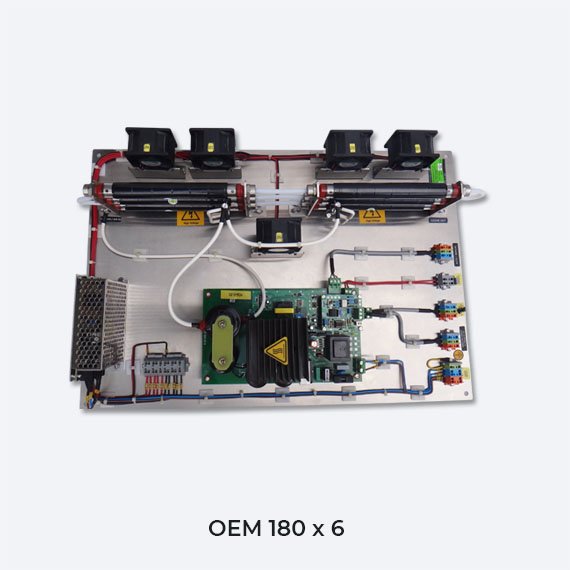

| OEM 180x6 | Dry air / Oxygen | 0 - 15 psi | 230 V, 50 Hz, 270 W | 560 x 380 in mm | 7.5 kgs | |
| OEM Block 50G | Dry air / Oxygen | 10 - 15 psi | 230 V, 50 Hz, 300 W | 560 x 380 in mm | 15 kgs |
