Industrial Oxygen Concentrator

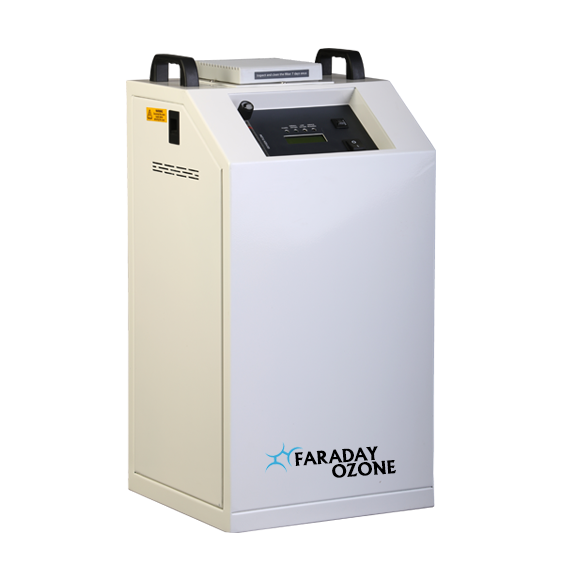

Model : OXI-5
Model : OXI-10

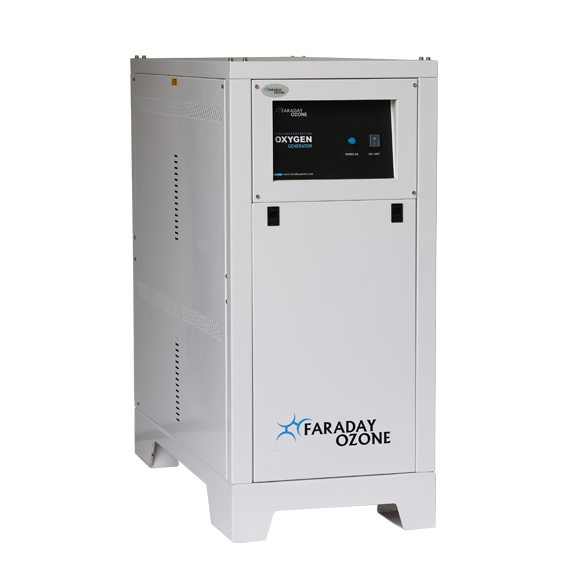

Model : OXI-20, OXI-30

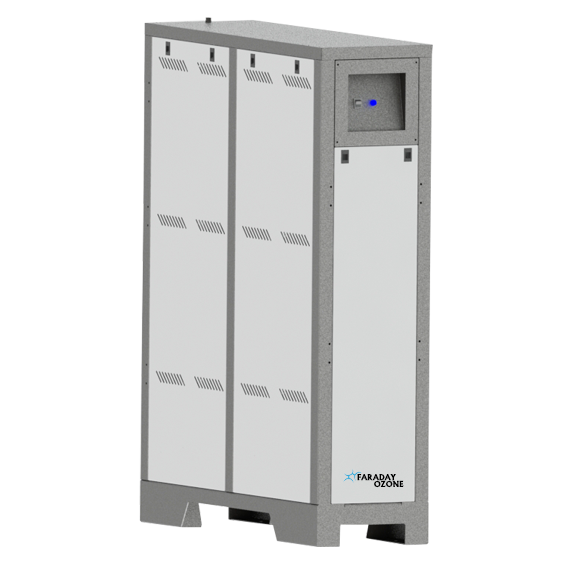

Model : OXI-40 to OXI-100
Industrial Oxygen Concentrator
Oxygen Capacity 5 - 100 lpm
OXI-series is a industrial oxygen concentrator which generates oxygen gas. It uses ambient air to deliver continuous and concentrated flow of oxygen across different applications. It runs on electricity and the only maintenance required is the regular cleaning of filters. It works on the principle based on Pressure Swing Absorption technology (PSA). Our OXI-series Oxygen Concentrator perfecly suitable for various applications such as, Ozone production, Waste water treatment and many more.
Overview
Our Oxygen Concentrator uses PSA technology which seperated oxygen and other gases from compressed air. The oxygen is allowed to flow through the module which results high purity oxygen at the outlet. It consists of air compressor, aluminum sieve beds with state-of-the-art molecular sieve material, filtration and flow of control systems are designed for years of operation. Our oxygen modules incorporate proven pressure swing adsorption (PSA) principles into a unique patented design which is far more compact, efficient, rugged and lower in cost than conventional PSA systems.
Product Features :
- Quiet Operation - less than 48 dBA
- Reliable oxygen source with low maintenance
- Produces up to 95% oxygen using PSA
- User-friendly design and easy-accessible control panel
- Air filters to ensure oxygen purity
- Quick Snap rear panel allows easy access to filters
- Superior grade of molecular sieve
- Oxygen purity monitoring & indication
Technical Data
| Model | Oxygen Capacity | Outlet Pressure | Oxygen Percentage | Electrical Rating | Dimension | Weight |
|---|---|---|---|---|---|---|
| OXI-5 | 5 lpm | 8.5 + or - 0.5 psi | 93% + or - 3% | 230 V, 50 Hz, 320 W | 320 x 298 x 576 in mm | 25 kgs |
| OXI-10 | 10 lpm | 8.5 + or - 0.5 psi | 93% + or - 3% | 230 V, 50 Hz, 700 W | 500 x 600 x 1100 in mm | 60 kgs |
| OXI-20 | 20 lpm | 8.5 + or - 0.5 psi | 93% + or - 3% | 230 V, 50 Hz, 1400 W | 500 x 1108 x 1114 in mm | 135 kgs |
| OXI-30 | 30 lpm | 8.5 + or - 0.5 psi | 93% + or - 3% | 230 V, 50 Hz, 2000 W | 550 x 1200 x 1614 in mm | 195 kgs |
| OXI-40 | 40 lpm | 8.5 + or - 0.5 psi | 93% + or - 3% | 230 V, 50 Hz, 2400 W | 550 x 900 x 1614 in mm | 240 kgs |
| OXI-50 | 50 lpm | 8.5 + or - 0.5 psi | 93% + or - 3% | 230 V, 50 Hz, 3200 W | 550 x 1658 x 1614 in mm | 280 kgs |
| OXI-60 | 60 lpm | 8.5 + or - 0.5 psi | 93% + or - 3% | 230 V, 50 Hz, 3200 W | 550 x 1980 x 1614 in mm | 320 kgs |
| OXI-100 | 100 lpm | 8.5 + or - 0.5 psi | 93% + or - 3% | 230 V, 50 Hz, 5600 W | 2000 x 2000 x 1734 in mm | 400 kgs |
