Ozone Generator
M-series

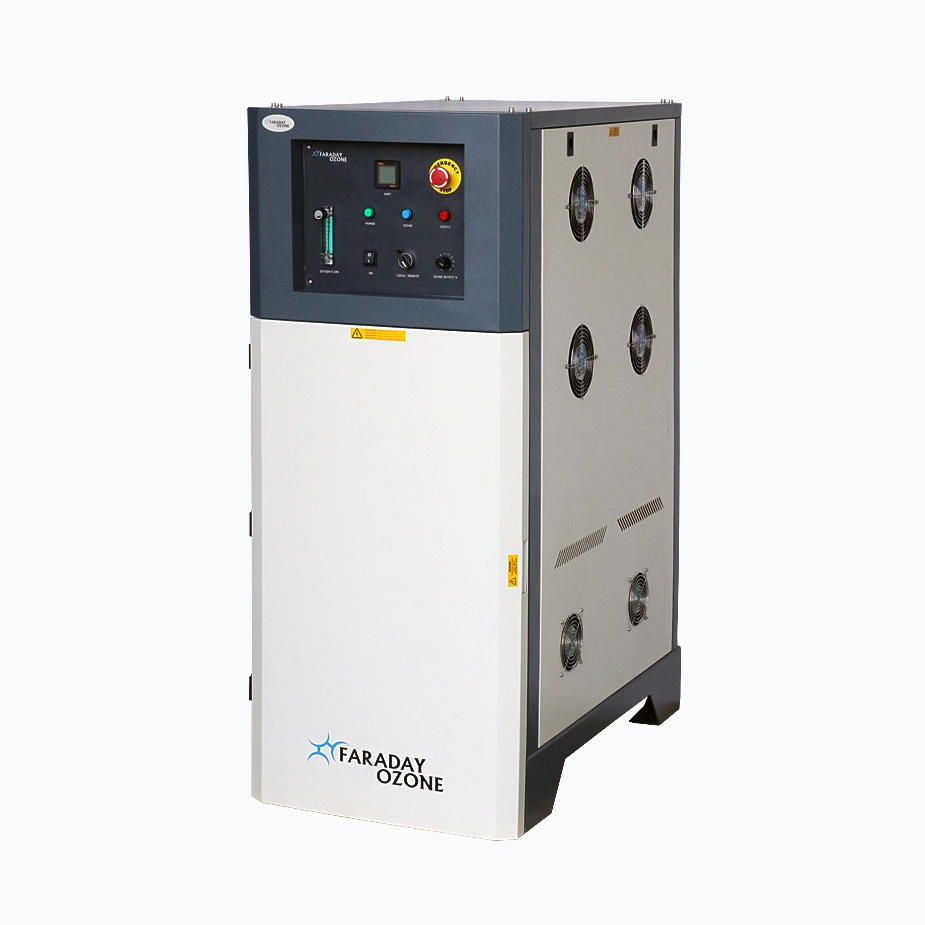

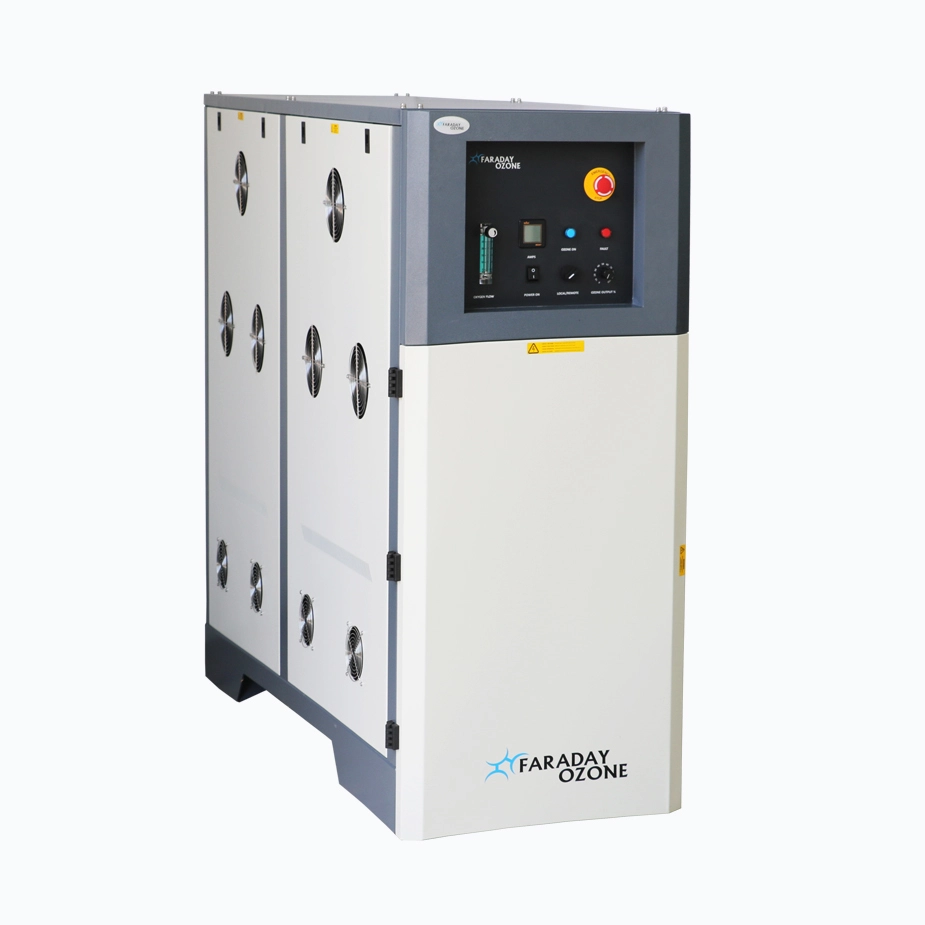

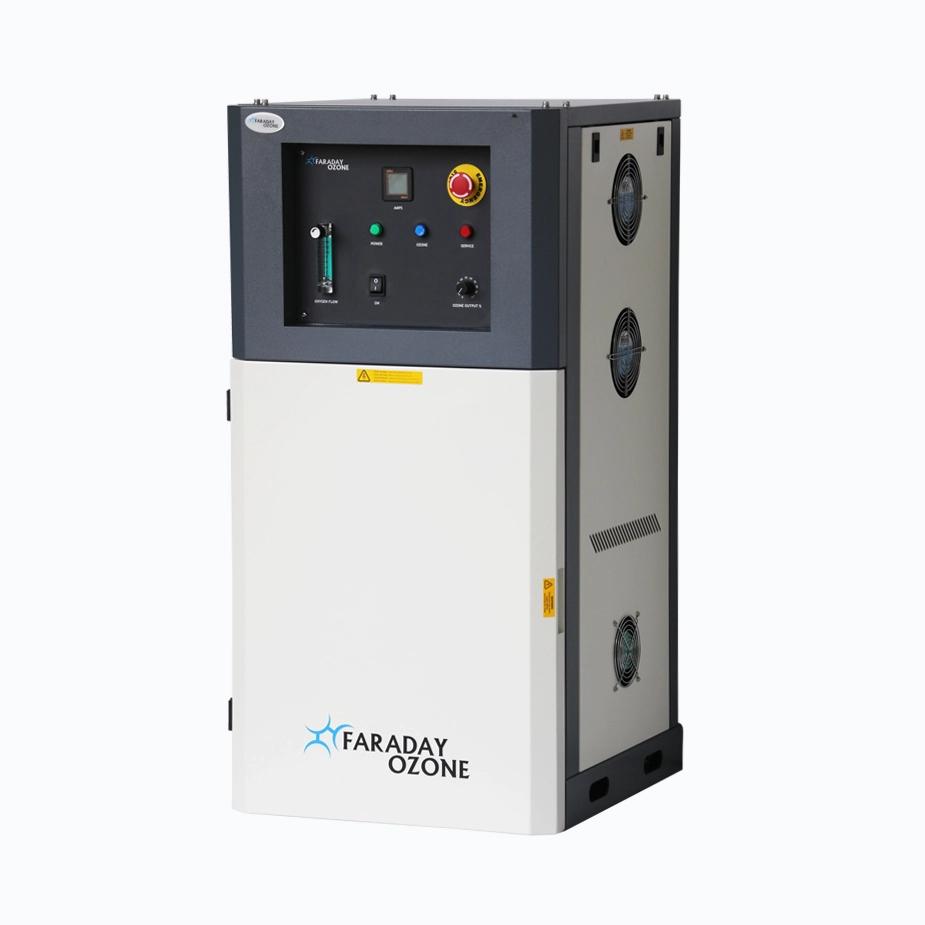

The M-series Oxygen Integrated Ozone Generator is the most advanced systems suitable for high ozone concentration. It is ready to use straight away after installation. It comes with inbuilt oxygen unit, safety features, control panel and industrial oxygen concentrator for feed gas. This series is designed for process automation, continuous running and maintenance free operation.
- Inbuilt industrial oxygen concentrator
- Efficient and excellent mass transfer of ozone
- High voltage and high frequency corona discharge
- Continuous operation with easy monitoring control panel
- Design comes with MS, SS and floor mountable system
Product Overview
The M-series Oxygen Integrated Ozone Generators produce up to 200 gm/hr ozone. It generates high concentration ozone from the inbuilt oxygen concentrator, lesser the oxygen feed needed and better the dissolved ozone efficiency.
The control panel shows and allows to keep track of all the operational parameters needed for day to day monitoring such as voltage/current meter, ozone status lamp, hours meter, pressure gauge, oxygen flow meter, variable ozone output knob, on/off switch, emergency shut down switch, over current and over temperature protection.
- 10 to 200 gm/hr ozone production
- High ozone concentrationup to 8 to 12 wt%
- Ozone / Oxygen delivery pressure up to 12 psi
- 4-20 mA signal for PLC control
- Produces 5 to 20 lpm oxygen for ozone production
- Adjustable Ozone output level (0-100 %)
Have a question or need assistance ?
We are here to help you with anything you need !
Working Principle
The ozone generator is an electronic system which converts oxygen into ozone using the principle of corona discharge technology. High voltage electric supply applied into the ozone generator provides the energy required to form electrical arcs known as corona discharge inside the patented corona cells. These corona discharge splits the oxygen molecules into oxygen atoms which recombine to form ozone.
The produced ozone is then used for water and air treatment. Ozone is produced by ozone generator on-site and it is completely safe for the disinfection process.
Extended Warranty Upto 1 Year
Our Ozone Generator are robust and reliable which offer a no-hassle 1 year warranty. We are confident enough on our technology and warranty covers for core materials like ozone electrodes and PCB comes for longevity. We recommend you to clean the fans filters and entire machine at least once in a month and replace the ozone power board and electrodes on a timely basis.
Technical Specifications
| Model | M10G | M20G | M30G | M40G | M50G | M60G | M100G | M150G | M200G |
|---|---|---|---|---|---|---|---|---|---|
| Input Power | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz | 230 V AC 50 Hz |
| Power Consumption | 650 Watts | 700 Watts | 700 Watts | 750 Watts | 800 Watts | 1300 Watts | 1600 Watts | 1800 Watts | 2840 Watts |
| Ozone Capacity | 10 gm/hr | 20 gm/hr | 30 gm/hr | 40 gm/hr | 50 gm/hr | 60 gm/hr | 100 gm/hr | 150 gm/hr | 200 gm/hr |
| Ozone Concentration | 6 - 8 % W | 6 - 8 % W | 6 - 8 % W | 6 - 8 % W | 6 - 8 % W | 8 - 12 % W | 8 - 12 % W | 8 - 12 % W | 8 - 12 % W |
| Inbuilt Oxygen | 5 lpm | 5 lpm | 5 lpm | 5 lpm | 5 lpm | 10 lpm | 15 lpm | 15 lpm | 20 lpm |
| Dimension (LxWXH) | 550 x 600 x 1107 mm | 550 x 600 x 1107 mm | 550 x 600 x 1107 mm | 550 x 600 x 1107 mm | 550 x 600 x 1107 mm | 550 x 969 x 1350 mm | 457 x 830 x 1184 mm | 457 x 830 x 1184 mm | 457 x 830 x 1184 mm |
| Weight | 98 kg | 98 kg | 99 kg | 99 kg | 99 kg | 135 kg | 135 kg | 136 kg | 136 kg |
Service & Installation Support across World
We are here to do service and installation support after sales. We have a team of engineers available round clock to handle and to provide prompt solution for your service related queries effectively and supportive towards product installation.
Product Certification
We design and manufacture our products in all level of quality standards and specifications which has been patented, quality tested and certified which guaranteed best quality product in the market.
FAQs
The ozone generator is an electronic system which converts oxygen into ozone using the principle of corona discharge technology. High voltage electric supply applied into the ozone generator provides the energy required to form electrical arcs known as corona discharge inside the patented corona cells. These corona discharge splits the oxygen molecules into oxygen atoms which recombine to form Ozone. The produced ozone is then used for water and air treatment.
Ozone is not stored in bulk anywhere rather ozone gas is produced by ozone generator on your site, which is very safe and environmentally friendly. Ozone is not flammable or explosive, as it has a very short life, which treats and decomposes back to oxygen.
Faraday’s ozone generator contains patented innovative ozone techniques to produce ozone, which is air-cooled and results in low cost, minimal maintenance, lowest power consumption, easy installations and many. We have 20+ patented ozone products and we are ISO certified too. We export more than 50+ countries with proper sales and service support as well.
Ozone disappears rapidly and it is produced by ozone generator at the site for water and air treatment of various applications. Because of its short life, ozone reacts and decomposes soon when produced. The half life of ozone in the water is about 30 minutes, which means that every half hour the ozone concentration will be reduced to half its initial concentration.
High voltage electric supply applied into the ozone generator provides the energy required to form electrical arcs known as corona discharge inside the patented corona cells. These corona discharge splits the oxygen molecules into oxygen atoms which recombine to form ozone.
Warranty of ozone generator is 1 year.
